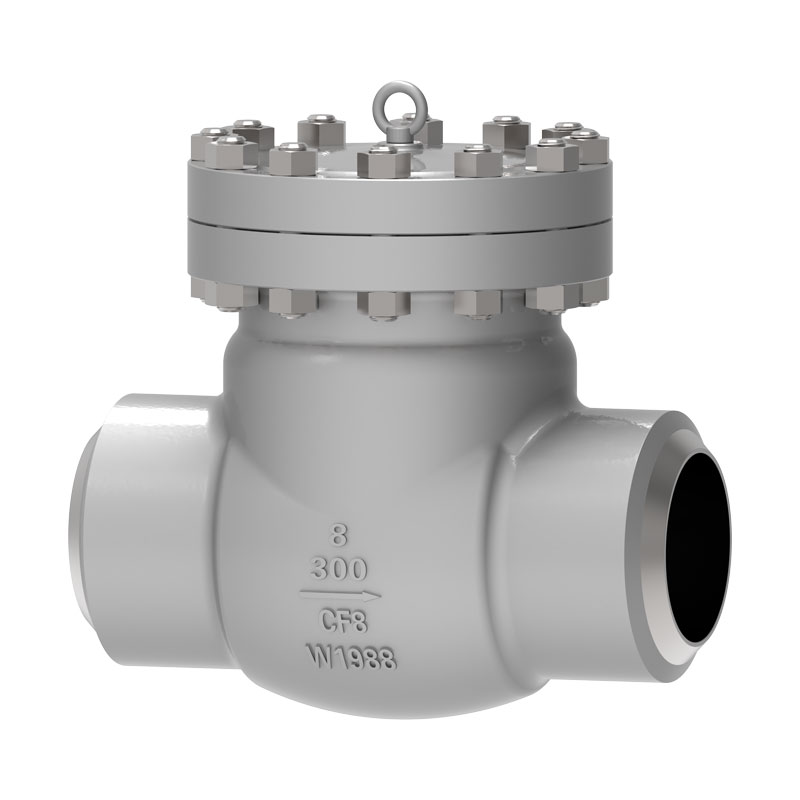

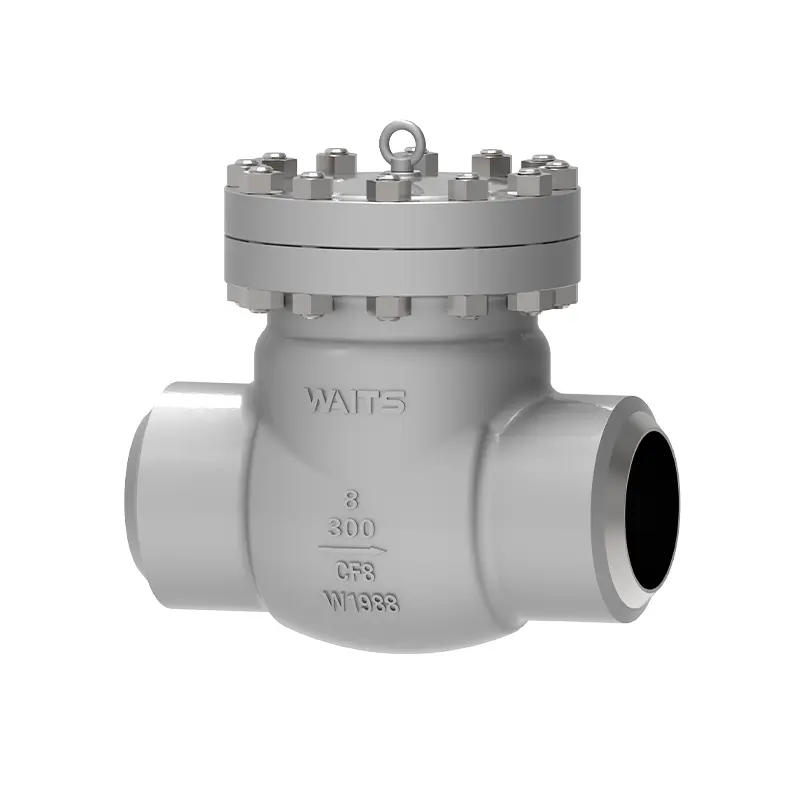

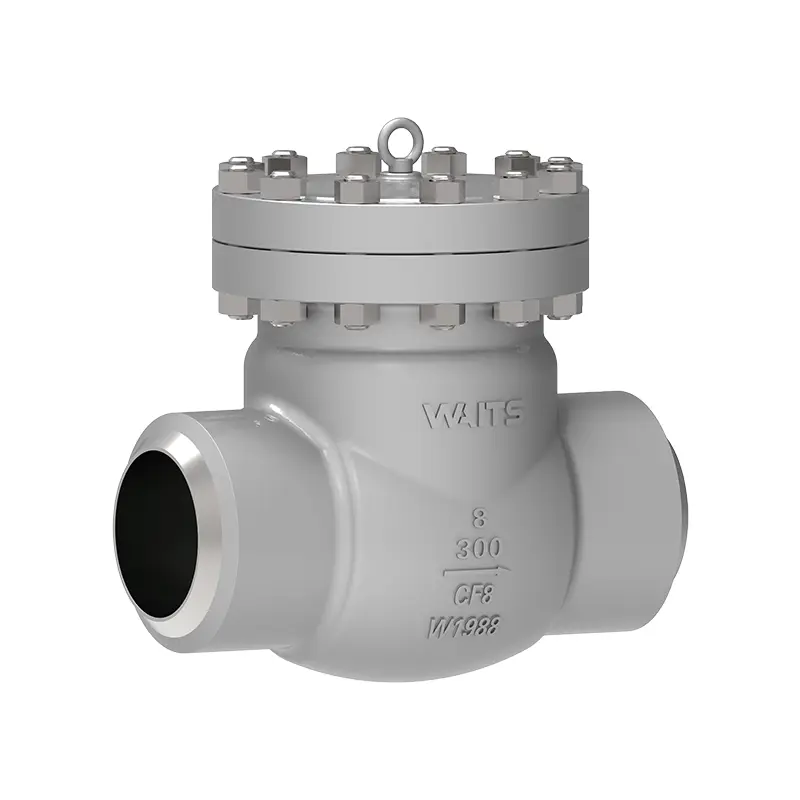

Cryogenic Swing Priksa Valve

The cryogenic swing check valve is a high-quality product manufactured by Waits Valve, and we can provide you with a competitive price, high cost performance. This product has been well used in Saudi Arabia, the United Arab Emirates, Kuwait, and the northern region. We hope to establish long-term cooperative relations with more customers and create a win-win future.

Kirim Pitakonan

Deskripsi Produk

Katup mriksa swing cryogenic digunakake ing sistem manajemen panyimpenan cairan cryogenic lan peralatan transportasi kanggo nyegah backflow media cryogenic. Wis karakteristik ngoper fleksibel lan sealing dipercaya.
Nalika medium mili ing arah sing ditemtokake, cakram tutup dibukak kanthi gaya medium; nalika medium mili bali, amarga bobot dhewe saka cakram tutup lan pasukan reaksi saka medium, cakram tutup lan tutup sealing lumahing tutup ditutup tightly, saéngga entuk tujuan kanggo nyegah backflow saka medium.
Applicable media: methane, liquefied natural gas, hexene, carbon dioxide, liquid ammonia, liquid oxygen, liquid nitrogen, liquid hydrogen and other cryogenic media.

Standar Implementasi

Standar desain	BS1868, API602, ASME16.34
Standar flange	ASME B16.10, ASME B16.25, ASME B16.5
Cara sambungan	RF, RTJ, BW
Testing lan acceptance	API598, API6D,
Structural length	ASME B16.10,
Rating tekanan lan suhu	ASME B16.34,
Test tahan geni	API607, API6FA
Standar bocor sing kurang	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Aplikasi

Ukuran	NPS 2″ ~ NPS 24″ DN50~ DN600
Rentang tekanan	CL150~ CL500 PN10~ PN250
Kisaran suhu	；-196°C ~ +150°C
Range aplikasi	Utamane digunakake ing etilena, peralatan gas alam cair, gas alam LPG, tank panyimpenan LNG, nampa basa lan stasiun satelit, peralatan misahake online, peralatan misahake gas buntut petrokimia, oksigen cair, hidrogen cair, nitrogen cair, argon cair,
Mode drive
Valve body/valve cover	A182 F304/F304L/F316/F316L/CF3/CF3M/LF2/LCB/LF3/LCC
Plat katup / kursi katup	F316/F304+HF
Batang katup	F6A F304 F316 F51 F53 Monel K500
Nut batang katup	Paduan Tembaga
Packing	Grafit fleksibel, kemasan asbes grafit, polytetrafluoroethylene...

Fitur Performance

1. Resistance adi cilik.
2. Klep mriksa swing cryogenic bisa diinstal kanthi horisontal utawa vertikal.
3. Low suhu Cairan nitrogen pretreatment bagean.
4. Tutup tutup nganggo tutup tutup bolt, tutup tutup welding, lan tutup tutup tutup otomatis.

Cryogenic Swing Check Valve
