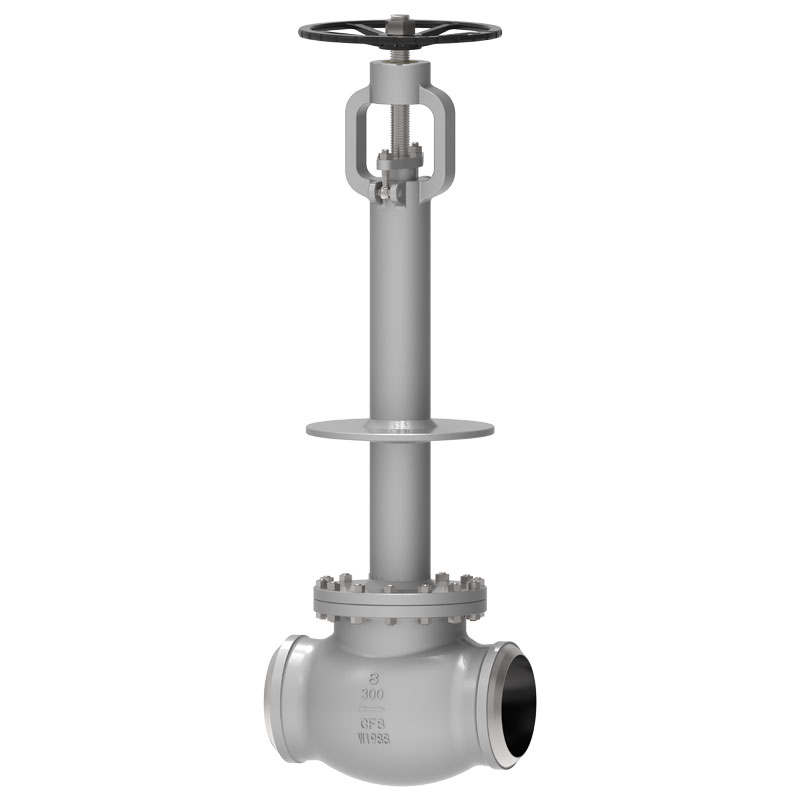

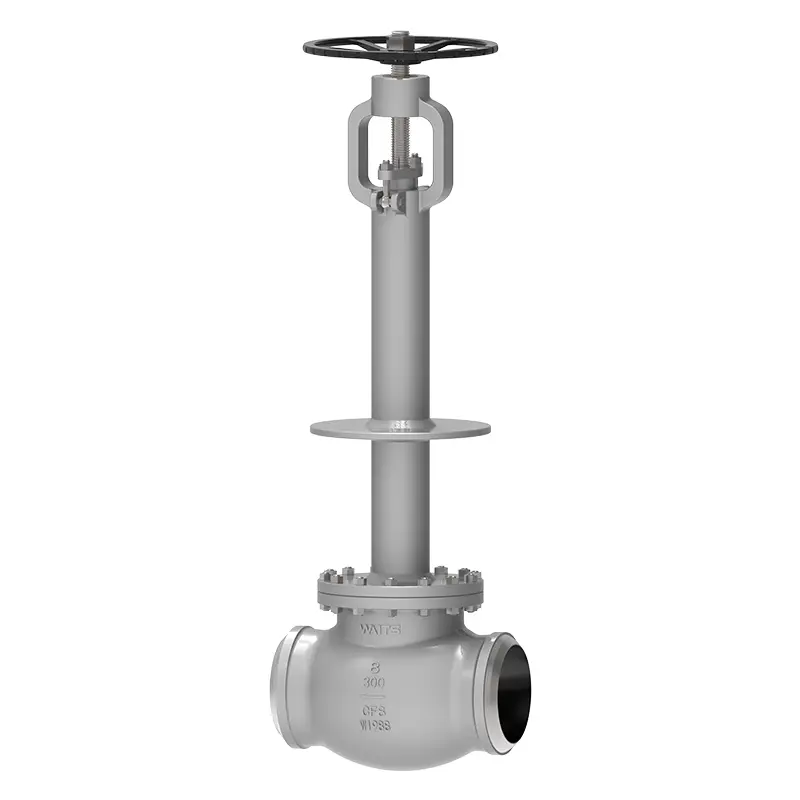

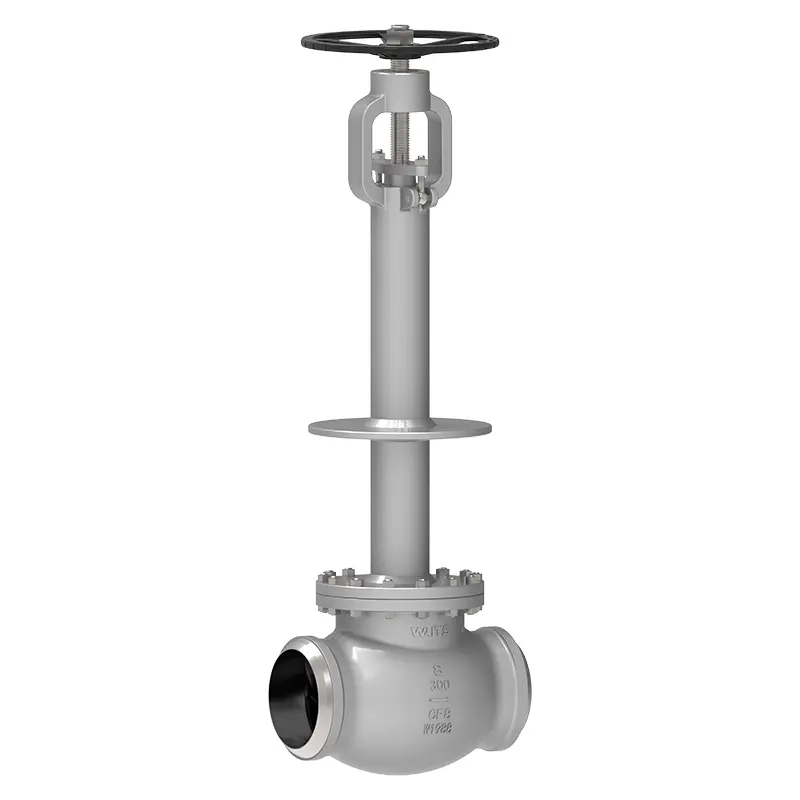

Katup Globe Kriogenik

Waits has 30 years of experience in the production and manufacture of cryogenic globe valves. We were originally established in the United States in 1994 and entered China in 2008, with production bases in Tianjin and Wenzhou. The cryogenic globe valve is one of our most popular products, designed for arctic temperature applications and can handle complex working conditions.

Kirim Pitakonan

Deskripsi Produk

Katup globe cryogenic dirancang kanggo aplikasi sing nglibatake suhu sing sithik banget, asring ditemokake ing industri sing nangani gas alam cair (LNG), nitrogen cair, lan cairan cryogenic liyane.
Katup iki nduweni bonet lengkap kanggo insulasi sing tepat lan kanggo nyegah pembekuan batang. Digawe saka baja tahan karat lan bahan cryogenic liyane, njamin daya tahan lan operasi sing lancar sanajan ing suhu nganti -196 ° C.
Katup globe cryogenic uga nduweni kemampuan throttling sing tepat lan mekanisme sealing, sing penting kanggo njaga kontrol lan safety ing lingkungan cryogenic sing nuntut. Waits nandheske kualitas minangka prioritas utama, lan uga menehi rega sing kompetitif.

Standar Implementasi

Standar desain	API 600, API 602, BS 6364, ASME B16.34, MESC SPE 77/200, MSS SP-134
Standar flange	ASME B16.10, ASME B16.25, ASME B16.5
Cara sambungan	RF, RTJ, BW
Testing and acceptance	API 598/BS 6364, MESC SPE 77/200, MSS SP-134
dawa struktural	ASME B16.10,
Rating tekanan lan suhu	ASME B16.34,
Fireproof test	API607, API6FA
Standar bocor sing kurang	ISO 15848-1, API 622
Desain anti karat	NACE MR 0103, NACE MR 0175

Aplikasi

Ukuran	NPS 2″ ~ NPS 24″ DN50~ DN600
Rentang tekanan	CL150~ CL1500 PN10~ PN250
Kisaran suhu	；-196°C ~ +150°C
Range aplikasi	Utamane digunakake ing etilena, peralatan gas alam cair, gas alam LPG, tank panyimpenan LNG, basis panrima lan stasiun satelit, peralatan pamisahan udara, peralatan pamisahan gas buntut petrokimia, oksigen cair, hidrogen cair, nitrogen cair, argon cair
Mode drive	Turbin, pneumatik, listrik
Katup awak / tutup katup	A182 F304/F304L/F316/F316L/CF3/CF3M/LF2/LCB/LF3/LCC
Plat katup / kursi katup	F316/F304+HF
Batang katup	F6A F304 F316 F51 F53 Monel K500
Nut batang katup	Paduan Tembaga
Packing	Grafit fleksibel, kemasan asbes grafit, polytetrafluoroethylene...

Fitur Performance

1. Ing bagean tutup ing kontak karo medium sing strictly cryogenically dianggep miturut syarat specification sadurunge rampung, lan bisa tahan expansion lan kontraksi disebabake owah-owahan suhu, lan struktur jog tutup ora bakal deformed permanen amarga owah-owahan suhu;
2. Katup globe cryogenic adopts struktur bonet long-necked sing bisa nglindhungi kothak stuffing;
3. A gate structure that can maintain reliable sealing regardless of temperature changes is adopted;
4. Kursi sealing ndhuwur dilas kanthi struktur karbida kobalt-kromium-tungsten;
5. Kursi tutup lan permukaan sealing gapura dilas kanthi struktur karbida kobalt-kromium-tungsten;
6. Struktur bolongan relief tekanan digunakake kanggo nyegah kenaikan tekanan sing ora normal ing rongga tengah, lan posisi bolongan relief tekanan gumantung saka struktur katup;
7. Lumahing batang tutup wis nitrided lan hardened kanggo nyegah goresan lumahing sak proses mbukak lan nutup tutup globe cryogenic saka mengaruhi kinerja;
8. The packing can be selected as low-leakage packing according to user requirements to ensure that the leakage at the valve packing meets environmental protection requirements. In addition, we can also provide welding sleeves according to user requirements.
