Katup Kupu-Kupu Kinerja Tinggi Pneumatik

Waits minangka produsen katup kupu-kupu pneumatik profesional lan pemasok kanthi basis produksi dhewe. Pengalaman industri kita sing sugih lan klompok profesional nganggep perlindungan lingkungan lan pangembangan lestari ing desain lan produksi, lan nggunakake bahan berkualitas tinggi kanggo njamin kinerja produk.

Kirim Pitakonan

Deskripsi Produk

Carefully apply the double eccentric structure design: When the valve is opened, the eccentric valve disc quickly leaves the valve seat sealing surface, shortening the contact time between the valve disc and the valve seat sealing surface, which helps to extend the service life of the valve.

Standar Implementasi

Standar Desain	API 609/607 fire safe, EN 593, ASME B16.34
End Standard	ANSI B16.5 CL. 150LB AS 2129 Table D and E BS 10 Table D and E ? MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN10 lan PN16 ISO 7005, PN10 lan PN16
	WAFRF
Inspeksi & Tes	API 598, EN 12266, ISO 5208, ANSI B16.104
Adhep-adhepan	API 609, ISO 5752 Terminasi: ASME B16.5, ASME B16.47, EN 1092, JIS B2210, GOST 12815
Top Flange	ISO 5211

Aplikasi

ukuran	NPS 3″ ~ NPS 80″ DN80~ DN2000
Rentang tekanan	CL150~CL600 PN10~PN40
Kisaran suhu	-30℃~+260℃ metal sealing up to 450 ℃
Mode drive	Turbine, pneumatic, electric
Lingkungan Operasi	Sistem ballast lan bilge Processing kimia Tanduran desalinasi, rig Pengeboran, Banyu ngombe Wêdakakêna garing, Pangan lan omben-omben, tanduran Gas VPSA HAVC Industri Pertambangan, Industri Kertas, Penanganan Pasir, Air Laut, Industri Gula Thermo technical water treatment Limbah banyu
Metode nyopir	Hand Lever Worm Gear Electric Pneumatic
BADAN	Cast Iron ulet wesi Karbon Steel Stainless Steel AL-Bronze
DISC	Stainless Steel AL-Perunggu
STEM	17-4PH XM-19 Monel K500
KURSI	VITON PTFE/RPTFE/PPL/PEEK

Kaluwihan Performance

1. Umur layanan sing dawa: Waits nglindhungi ring kursi tutup saka nyandhang lan erosi kanthi desain, saéngga ndawakake umur layanan, nyuda biaya pangopènan lan panggantos, lan nggawe manajemen lan nggunakake luwih trep.

2. Reliable: The double eccentric design can ensure sealing, while also achieving low torque and easy operation.

3. Gampang kanggo ngganti lan njaga: Kaping pisanan, yen perlu, kursi tutup lan packing bisa diganti mung sawetara menit karo alat pangopènan. Titik liyane yaiku bahan manufaktur katup kupu-kupu kinerja tinggi pneumatik tahan karat, lan pangopènan ora mbutuhake downtime, utawa pangopènan lan pelumasan sing kerep.

4. Sealing tekanan bidirectional ditrapake, lan ora ana watesan aliran nalika instalasi.

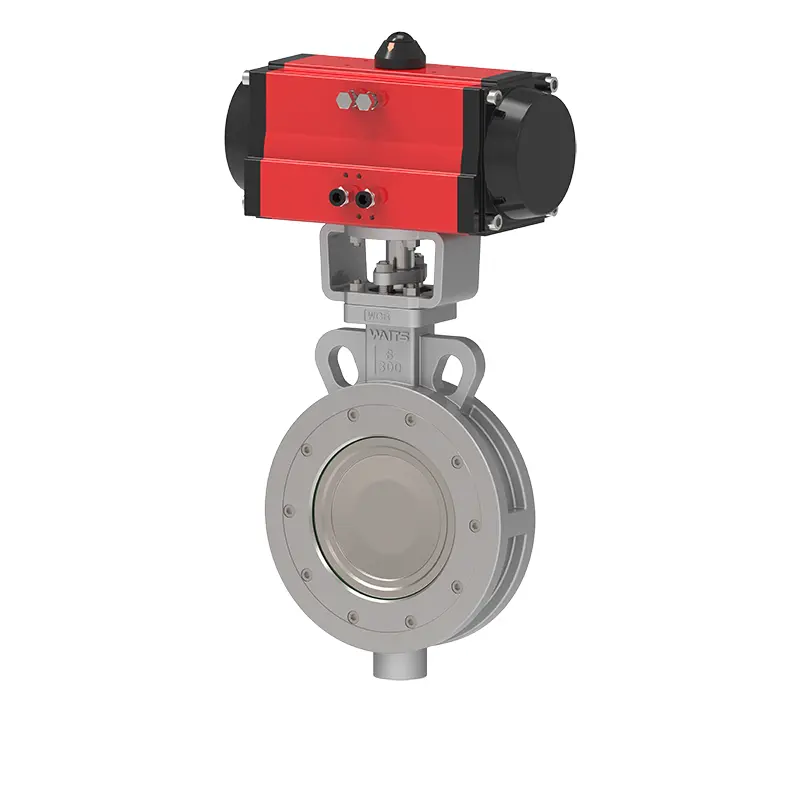

Pneumatic High Performance Butterfly Valve
