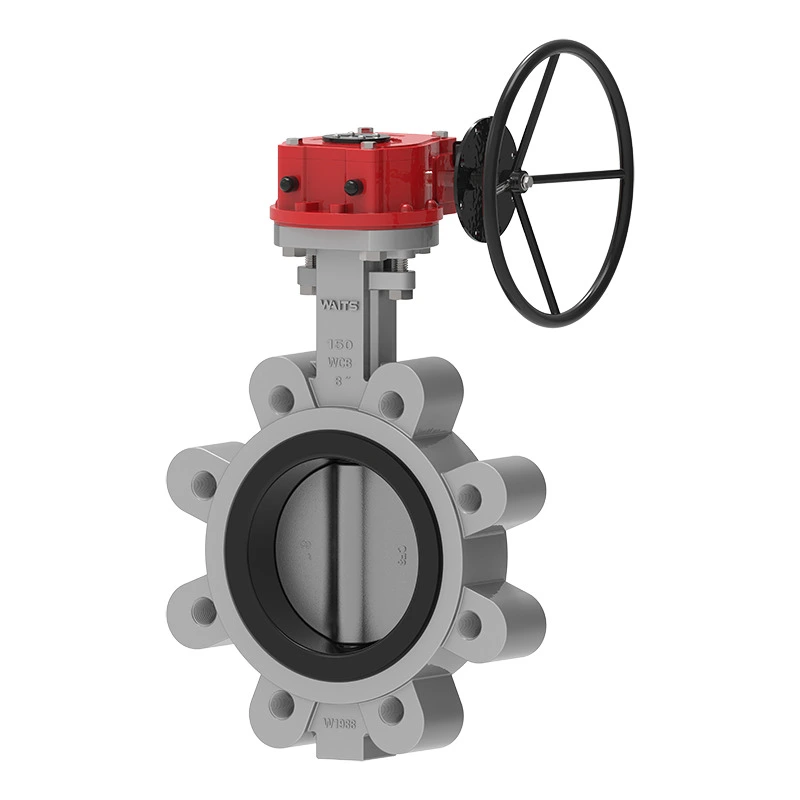

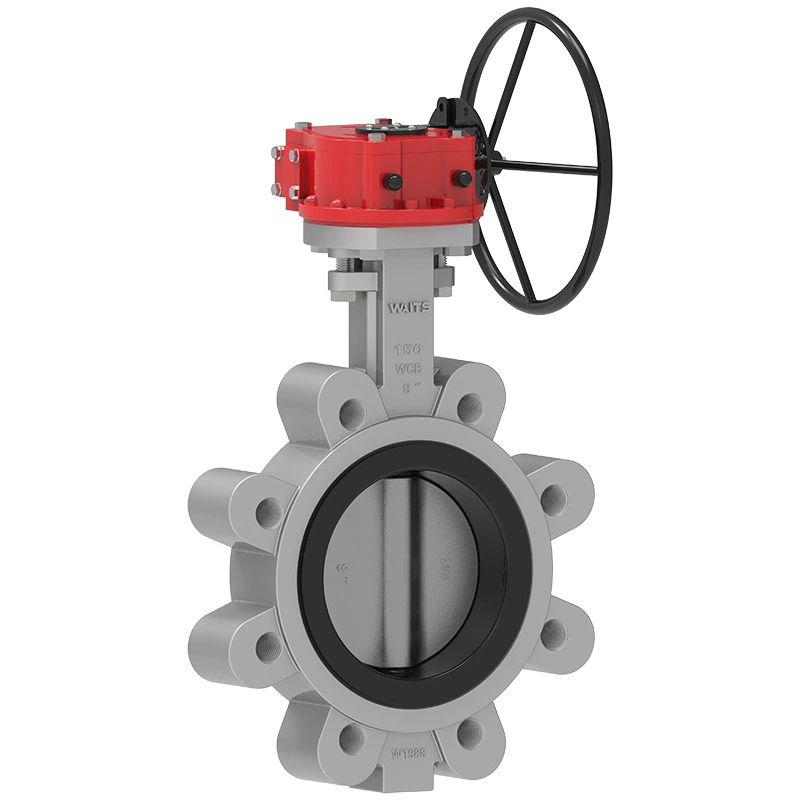

Wafer Lug Concentric Butterfly Valve

Standar Implementasi Standar DesainAPI 609, EN 593, BS 5155, GOSTEnd StandardANSI B16.1 CL. 125LB lan B16.5 CL. 150LBDIN 2501 PN6/PN10/PN16/,EN 1092 PN6, PN10 lan PN16AS 2129 Tabel D lan E BS 10 Tabel D lan EMSS SP44 CL. 150LBAWWA C207 150LBISO 2531 PN6, PN10 lan PN16ISO 7005 PN6, PN10 lan PN16Inspe......

Kirim Pitakonan

Deskripsi Produk

Standar Implementasi

Standar Desain	API 609, EN 593, BS 5155, GOST
End Standard	ANSI B16.1 CL. 125LB lan B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 lan PN16 AS 2129 Tabel D lan E BS 10 Tabel D lan E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 lan PN16 ISO 7005 PN6, PN10 lan PN16
Inspeksi & Tes	API 598, IS0 5208, EN 12266-1, GOST
Adhep-adhepan	AP 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Aplikasi

Suhu operasi	-45 ℃ ~ 150 ℃
Ukuran	2"-80", DN50-DN2000
Tekanan kerja / CWP	16BAR 10BAR
cangkang	24BAR 15BAR
Segel	18BAR 10BAR
Uji Udara	6BAR 6BAR
Lingkungan Operasi	Sistem ballast lan bilge Processing kimia Tanduran desalinasi, rig pengeboran, banyu ngombe Bubuk garing, Pangan lan omben-omben, Pabrik Gas HAVC Industri Pertambangan, Industri Kertas, Penanganan Pasir, Air Laut, Industri Gula Thermo technical water treatment Limbah banyu
Operator	Tuas, Gear, Listrik, Pneumatik, lsp.
Bahan Badan	Besi tuang, Besi Ulet, Baja Karbon, Baja Tahan Karat, AL-Bronze, dll.
Disk	Besi tuang, Besi Ulet, Baja Karbon, Baja Tahan Karat, AL-Bronze
Batang	2CR13 F304 F316 F51 F53 Monel K500
Kursi	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Karet alam
