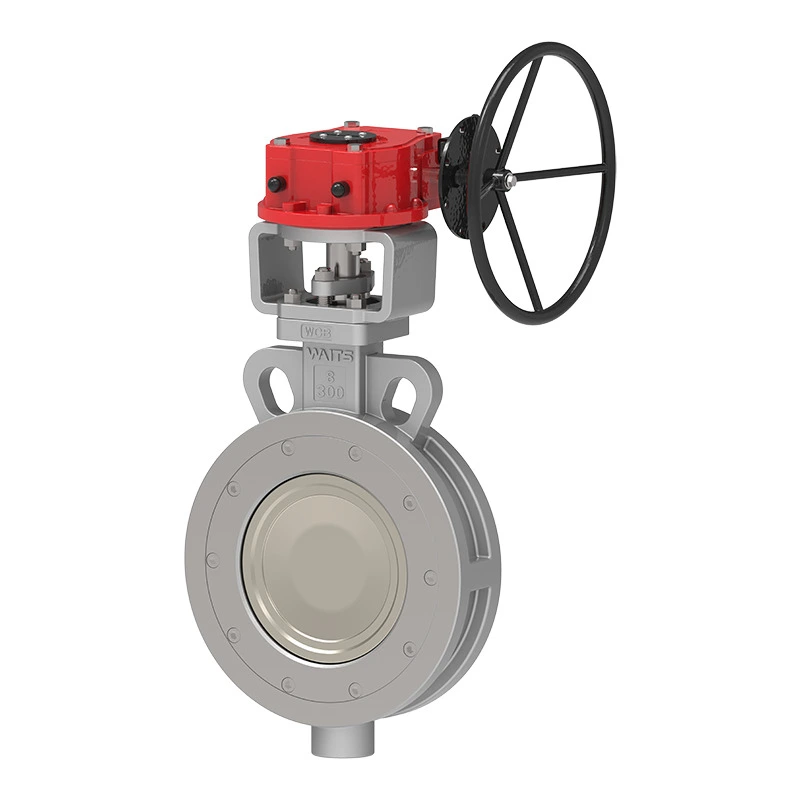

Wafer Double Eccentric Butterfly Valve

Waits's Wafer Double Eccentric Butterfly Valve nduweni fitur desain ngurangi impact lan kursi karet alus. Becik kanggo sistem banyu farmasi (-10 ° C nganti 180 ° C), padha njamin sealing sing dipercaya, bebas kontaminasi, tundhuk karo GMP kanggo safety proses kritis.Standar Implementas......

Kirim Pitakonan

Deskripsi Produk

Standar Implementasi

Standar Desain	API 609, EN 593, GOST
End Standard	ANSI B16.1 CL. 125LB lan B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 lan PN16 AS 2129 Tabel D lan E BS 10 Tabel D lan E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 lan PN16 ISO 7005 PN6, PN10 lan PN16
	RF
Inspeksi & Tes	API 598, EN 12266-1, GOST
Adhep-adhepan	API 609, EN 558, ASME B16.10, GOST
Top Flange	ISO 5211

Aplikasi

Ukuran	3"-80", DN80-DN2000
Rating tekanan	Kelas 150-600, PN16-PN40
Suhu operasi	Kursi alus: -29 ~ 200 ℃, Kursi Metal: -29 ~ 450 ℃
Mode drive	Turbin, pneumatik, listrik
Lingkungan Operasi	Sistem ballast lan bilge Processing kimia Tanduran desalinasi, rig Pengeboran, Banyu ngombe Wêdakakêna garing, Pangan lan omben-omben, Pabrik Gas HAVC Industri Pertambangan, Industri Kertas, Penanganan Pasir, Air Laut, Industri Gula Thermo technical water treatment Limbah banyu
Operator	Tuas, Gear, Listrik, Pneumatik, lsp.
Bahan Badan	Baja Karbon, Baja Tahan Karat, Baja Tahan Karat Dupleks, Baja Paduan, Monel, Perunggu AI, dll.
DISC	Cast Iron ulet wesi Karbon Steel Stainless Steel AL-Bronze
STEM	2CR13 F304 F316 F51 F53 Monel K500
KURSI	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Karet alam

Kaluwihan Performance

1. Long layanan urip: tutup dirancang khusus kanggo èfèktif nglindhungi ring jog tutup saka nyandhang lan erosi.
2. Reliabilitas: Desain eksentrik pindho njamin kinerja sealing optimal lan torsi kurang.
3. Panggantos gampang: Kursi tutup lan pengepakan bisa diganti kanthi cepet kanthi bantuan kit ndandani.
4. Gampang pangopènan: Materi wis resistance karat apik lan ora downtime, lubrication lan pangopènan dibutuhake.
5. sealing tekanan bidirectional, ora ana watesan arah aliran nalika instalasi.

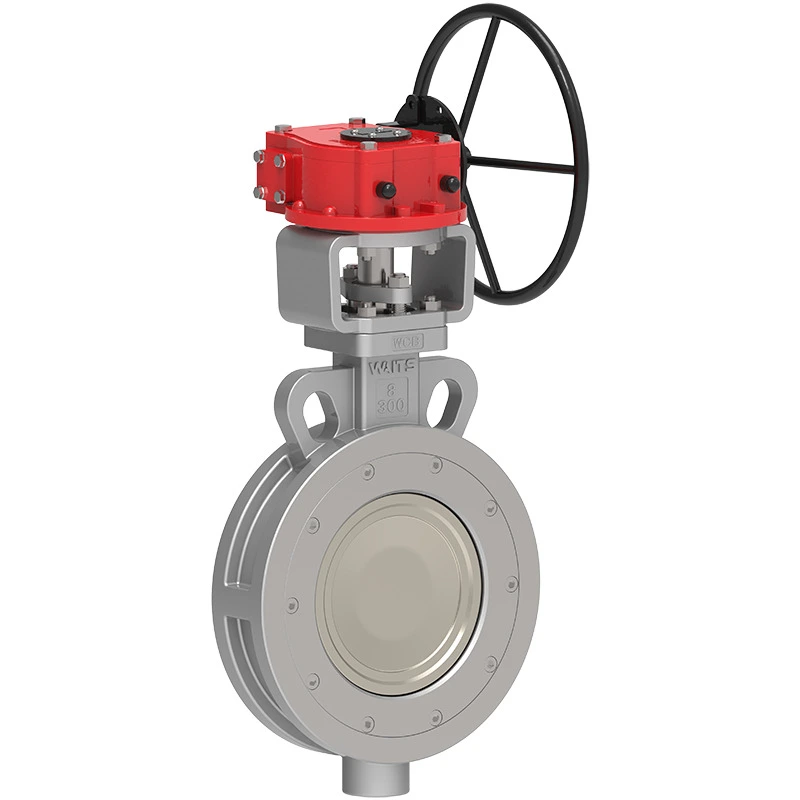

Wafer Double Eccentric Butterfly Valve
