Bellows Gate Valve

If you are looking for high-quality bellows gate valve, Waits can be your trusted choice. As an experienced valve manufacturer and supplier in the industry, the bellows gate valve we produce is widely used in urban heating, gas transmission, steam pipelines and large-scale water conservancy projects, and has been recognized by customers in many countries in Europe and the Middle East.

Kirim Pitakonan

Deskripsi Produk

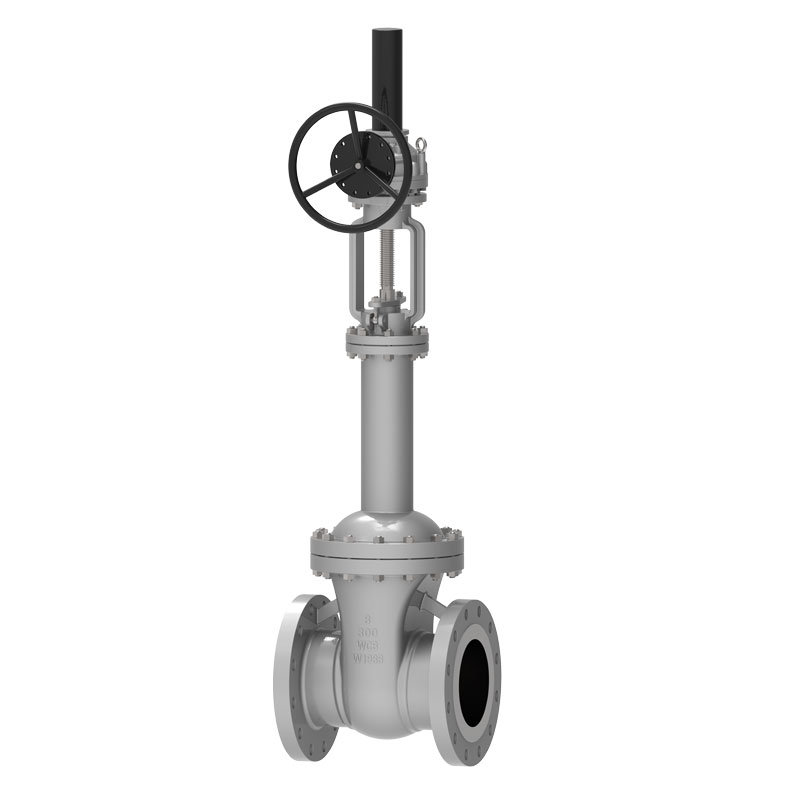

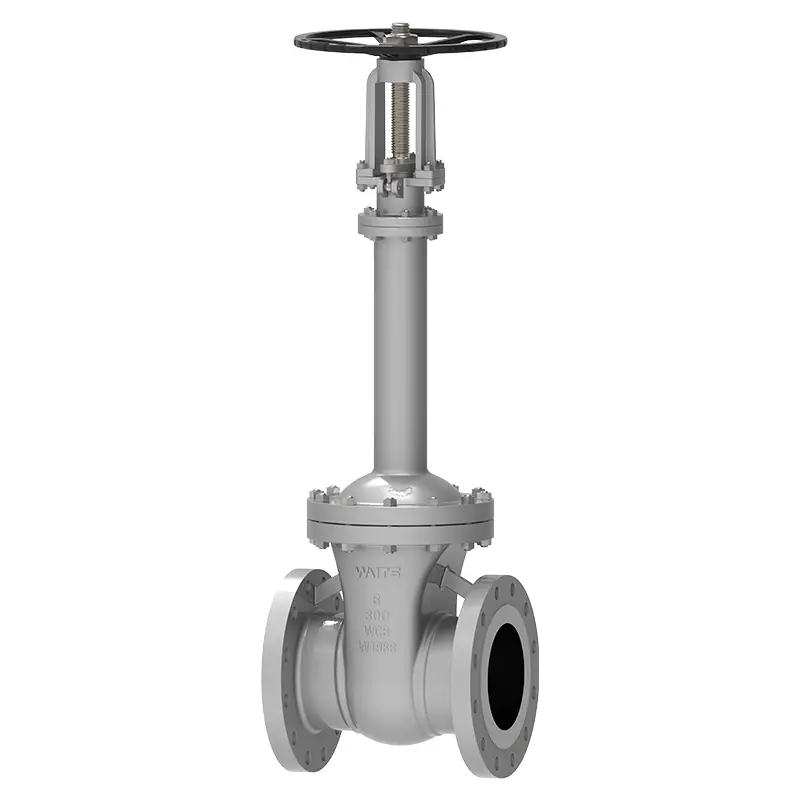

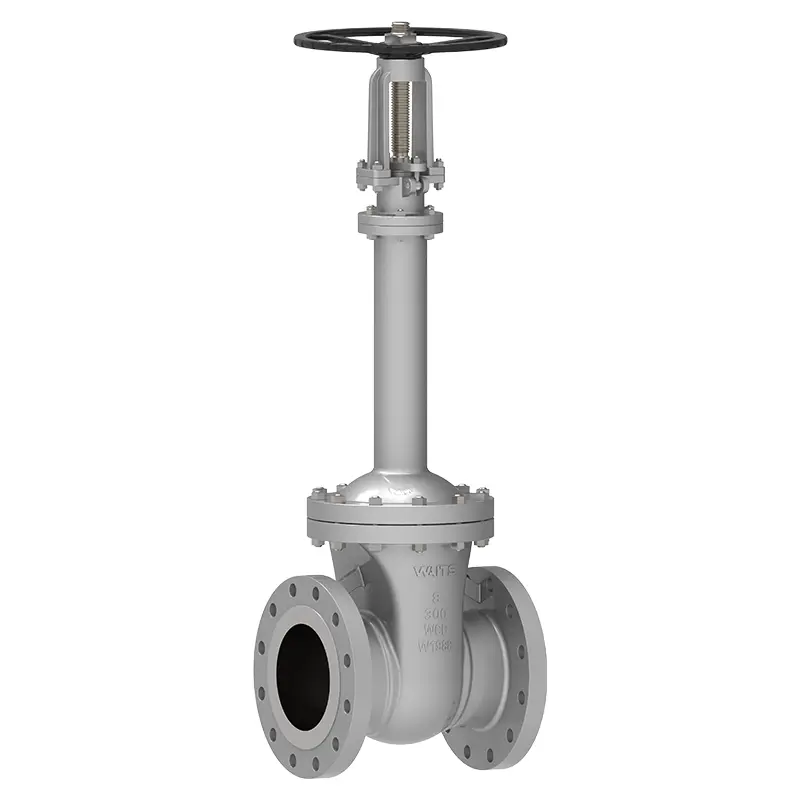

Katup gerbang bellow mbentuk penghalang logam antarane medium cairan lan atmosfer liwat welding rolling otomatis, yaiku desain sing nglindhungi batang tutup saka bocor.
The bellows structure is used inside, and the lower end of the stainless steel bellows is welded to the valve stem to prevent the process fluid from corroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. The double sealing design is more secure. If the bellows fails, the valve stem packing will also avoid leakage.
Bellows dilas menyang batang tutup kanggo njaga kinerja operasi sing stabil lan nyegah getaran batang tutup sing disebabake geter tutup tutup. Katup gerbang bellows paling cocok kanggo pipelines karo uap, flammable, mbledhos, lenga termal, kemurnian dhuwur, beracun lan media liyane.

Standar Implementasi

Design standards	DIN3356, ASME B16.34
Standar flange	DIN2543-2545, ASME B16.5, ASME B16.47
Cara sambungan	RF,
Testing lan acceptance	DIN3230, API 598
dawa struktural	DIN3203, ASME B16.10
Rating tekanan lan suhu	ASME B16.34,
Test tahan geni	API607, API6FA
Standar bocor sing kurang	ISO 15848-1, API 622
Desain anti karat	NACE MR 0103, NACE MR 0175

Aplikasi

Ukuran	NPS 2″~ NPS 24″ DN50~ DN600
Rentang tekanan	CL150~CL1500 PN10 ~ PN260
Kisaran suhu	-20 ℃ ~ 350 ℃
Range aplikasi	Banyu tunyuk, limbah, konstruksi, minyak bumi, industri kimia, panganan, obat-obatan, tekstil, listrik, galangan kapal, metalurgi, sistem energi, lsp.
Mode drive	Handwheel, bevel gear, listrik, pneumatik, lsp.
Katup awak / tutup katup	(A216 WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A), Alloy 20, Monel...
Sealing lumahing	Body, body cladding iron-based alloy, cladding hard-based alloy
Batang katup	F6A F304 F316 F51 F53 Monel K500
Nut batang katup	Paduan Tembaga
Packing	Grafit fleksibel, kemasan asbes grafit, polytetrafluoroethylene...

Fitur Performance

Kaluwihan
1. Katup gerbang bellow nduweni struktur sing cukup, kinerja sealing sing dipercaya lan katon apik;
2. The sealing surface is welded with Co-based hard alloy, which is wear-resistant, corrosion-resistant, friction-resistant and has a long service life;
3. Batang tutup tempered lan nitrided ing permukaan, sing nduweni ketahanan korosi lan gesekan sing apik;
4. Desain sealing pindho diadopsi, lan kinerja luwih dipercaya;
5. Batang tutup pratondo posisi ngangkat luwih intuisi;
6. Materi saka bagean, flange lan ukuran nomer welding bokong bisa cukup dipilih miturut kahanan nyata utawa syarat pangguna kanggo nyukupi macem-macem kabutuhan engineering.

Fitur:
1. Desain sealing pindho punika bellows + tutup stem packing. Yen bellows gagal, tutup gagang packing uga bakal supaya bocor;
2. Ora mundhut adi lan mundhut energi kurang;
3. Urip layanan dawa, sing mbantu nyuda jumlah pangopènan;
4. Jog tutup medium gas adopts PTFE materi sealing alus, kang mbantu kanggo nambah sealing saka bellows gapura tutup;
5. Kursi tutup nganggo segel hard conical, sing tahan suhu dhuwur lan nduweni kedap udara sing apik;

Bellows Gate Valve
